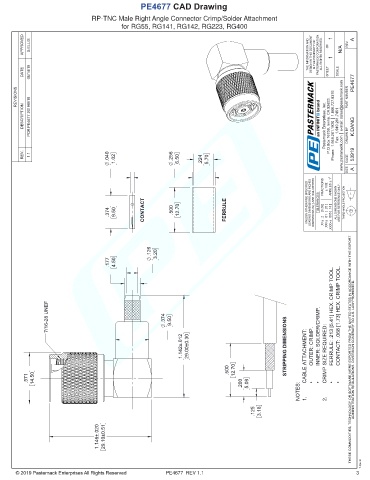

PE4677 CAD Drawing
RP-TNC Male Right Angle Connector Crimp/Solder Attachment
for RG55, RG141, RG142, RG223, RG400

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 06/14/19 SHEET OF SCALE PE4677

REVISIONS PART NUMBER

DESCRIPTION PCR PE4677 20190610 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. 1.1 .040 1.02 .256 6.50 .224 5.70 CAGE 53919

SIZE A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS ± 1/32 ANGLES ± 1° ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
.374 9.50 CONTACT .500 12.70 FERRULE .2 [5.08] .01 [ .25 ] .005 [ .13 ]
.X=± .XX=± .XXX=±

.126
3.20
.177 4.50

7/16-28 UNEF .374 9.50 FERRULE: .213 [5.41] HEX. CRIMP TOOL. CONTACT: .068 [1.73] HEX. CRIMP TOOL.

1.142±.012 29.00±0.30 STRIPPING DIMENSIONS OUTER: CRIMP. INNER: SOLDER/CRIMP. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

CABLE ATTACHMENT: CRIMP SIZE REQUIRED:

.500 12.70
.571 14.50 • • • •

.200 5.08
NOTES:
1. 2.
.125 3.18

1.146±.020 29.10±0.51
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

T-Rev.B
