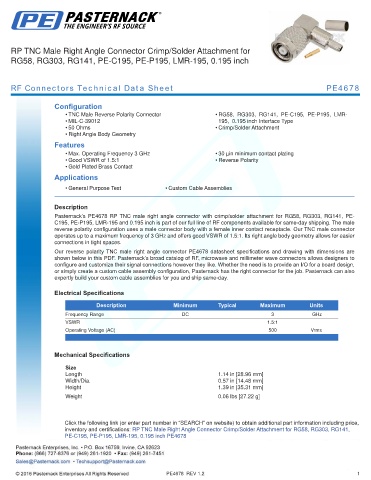

RP TNC Male Right Angle Connector Crimp/Solder Attachment for
RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE4678

Configuration
• TNC Male Reverse Polarity Connector • RG58, RG303, RG141, PE-C195, PE-P195, LMR-
• MIL-C-39012 195, 0.195 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 3 GHz • 30 µin minimum contact plating
• Good VSWR of 1.5:1 • Reverse Polarity
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4678 RP TNC male right angle connector with crimp/solder attachment for RG58, RG303, RG141, PE-
C195, PE-P195, LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. The male
reverse polarity configuration uses a male connector body with a female inner contact receptacle. Our TNC male connector
operates up to a maximum frequency of 3 GHz and offers good VSWR of 1.5:1. Its right angle body geometry allows for easier
connections in tight spaces.
Our reverse polarity TNC male right angle connector PE4678 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.14 in [28.96 mm]
Width/Dia. 0.57 in [14.48 mm]
Height 1.39 in [35.31 mm]
.
Weight 0.06 lbs [27.22 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Right Angle Connector Crimp/Solder Attachment for RG58, RG303, RG141,
PE-C195, PE-P195, LMR-195, 0.195 inch PE4678

PE4678 REV 1.2 1
