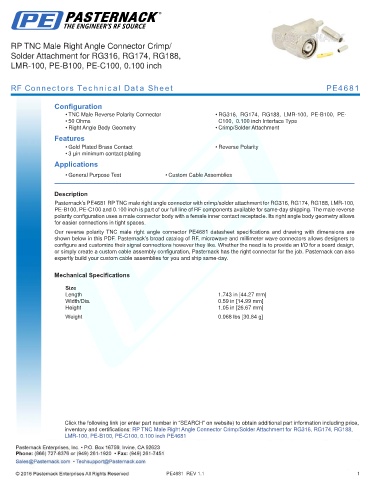

RP TNC Male Right Angle Connector Crimp/
Solder Attachment for RG316, RG174, RG188,
LMR-100, PE-B100, PE-C100, 0.100 inch

RF Connectors Technical Data Sheet PE4681

Configuration
• TNC Male Reverse Polarity Connector • RG316, RG174, RG188, LMR-100, PE-B100, PE-
• 50 Ohms C100, 0.100 inch Interface Type
• Right Angle Body Geometry • Crimp/Solder Attachment
Features
• Gold Plated Brass Contact • Reverse Polarity
• 3 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4681 RP TNC male right angle connector with crimp/solder attachment for RG316, RG174, RG188, LMR-100,
PE-B100, PE-C100 and 0.100 inch is part of our full line of RF components available for same-day shipping. The male reverse
polarity configuration uses a male connector body with a female inner contact receptacle. Its right angle body geometry allows
for easier connections in tight spaces.
Our reverse polarity TNC male right angle connector PE4681 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.743 in [44.27 mm]
Width/Dia. 0.59 in [14.99 mm]
Height 1.05 in [26.67 mm]
.
Weight 0.068 lbs [30.84 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Right Angle Connector Crimp/Solder Attachment for RG316, RG174, RG188,
LMR-100, PE-B100, PE-C100, 0.100 inch PE4681

PE4681 REV 1.1 1
