RP TNC Male Right Angle Connector Clamp/Solder Attachment
For RG58, RG55, RG141, RG142, RG223, RG400

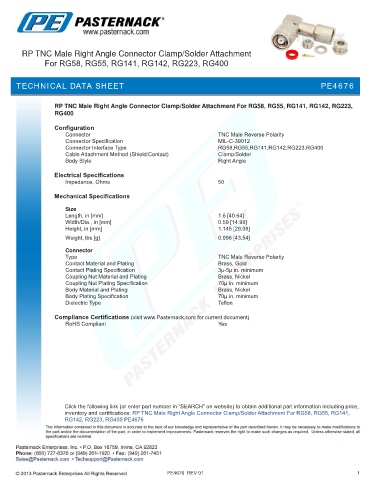

TECHNICAL DATA SHEET PE4676

RP TNC Male Right Angle Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400

Configuration
Connector TNC Male Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type RG58,RG55,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Right Angle

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 1.6 [40.64]
Width/Dia., in [mm] 0.59 [14.99]
Height, in [mm] 1.145 [29.08]
.
Weight, lbs [g] 0.096 [43.54]
Connector
Type TNC Male Reverse Polarity
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 70µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Right Angle Connector Clamp/Solder Attachment For RG58, RG55, RG141,
RG142, RG223, RG400 PE4676

PE4676 REV 01 1
