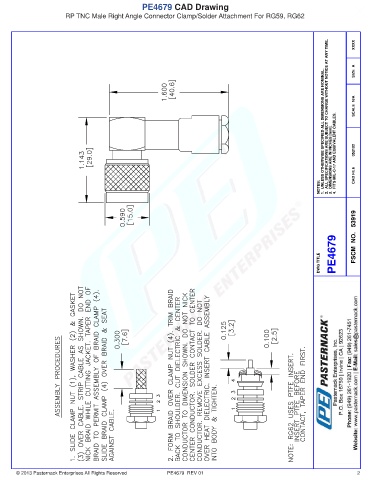

PE4679 CAD Drawing
RP TNC Male Right Angle Connector Clamp/Solder Attachment For RG59, RG62

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 053102

NOTES: CAD FILE

DWG TITLE PE4679 FSCM NO. 53919

© 2013 Pasternack Enterprises All Rights Reserved PE4679 REV 01 2
