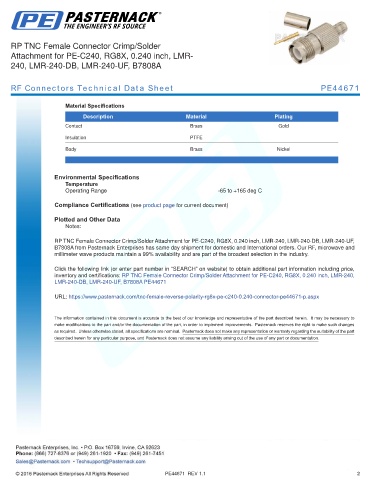

Page 374 - TNC to Double Banana RF Connector Datasheets

RP TNC Female Connector Crimp/Solder
Attachment for PE-C240, RG8X, 0.240 inch, LMR-
240, LMR-240-DB, LMR-240-UF, B7808A

RF Connectors Technical Data Sheet PE44671

Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

RP TNC Female Connector Crimp/Solder Attachment for PE-C240, RG8X, 0.240 inch, LMR-240, LMR-240-DB, LMR-240-UF,
B7808A from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and
millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Connector Crimp/Solder Attachment for PE-C240, RG8X, 0.240 inch, LMR-240,
LMR-240-DB, LMR-240-UF, B7808A PE44671

URL: https://www.pasternack.com/tnc-female-reverse-polarity-rg8x-pe-c240-0.240-connector-pe44671-p.aspx

PE44671 REV 1.1 2
