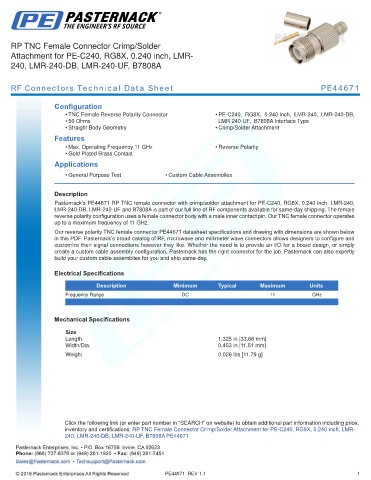

RP TNC Female Connector Crimp/Solder
     Attachment for PE-C240, RG8X, 0.240 inch, LMR-
     240, LMR-240-DB, LMR-240-UF, B7808A



     RF Connectors Technical Data Sheet                                                                    PE44671


                   Configuration
                       • TNC Female Reverse Polarity Connector          • PE-C240,  RG8X,  0.240 inch,  LMR-240,  LMR-240-DB,
                       • 50 Ohms                                         LMR-240-UF,  B7808A Interface Type
                       • Straight Body Geometry                         • Crimp/Solder Attachment
                   Features
                       • Max. Operating Frequency 11 GHz                • Reverse Polarity
                       • Gold Plated Brass Contact
                   Applications
                       • General Purpose Test           • Custom Cable Assemblies
                   .
                   Description
                   Pasternack’s PE44671 RP TNC female connector with crimp/solder attachment for PE-C240, RG8X, 0.240 inch, LMR-240,
                   LMR-240-DB, LMR-240-UF and B7808A is part of our full line of RF components available for same-day shipping. The female
                   reverse polarity configuration uses a female connector body with a male inner contact pin. Our TNC female connector operates
                   up to a maximum frequency of 11 GHz.
                   Our reverse polarity TNC female connector PE44671 datasheet specifications and drawing with dimensions are shown below
                   in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
                   customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
                   create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
                   build your custom cable assemblies for you and ship same-day.


                   Electrical Specifications
                                 Description              Minimum        Typical       Maximum         Units
                       Frequency Range                       DC                           11             GHz
                       .

                   Mechanical Specifications

                       Size
                       Length                                            1.325 in [33.66 mm]
                       Width/Dia.                                        0.453 in [11.51 mm]
                       .
                       Weight                                            0.026 lbs [11.79 g]
                       .










                      Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
                      inventory and certifications: RP TNC Female Connector Crimp/Solder Attachment for PE-C240, RG8X, 0.240 inch, LMR-
                      240, LMR-240-DB, LMR-240-UF, B7808A PE44671






                                                       PE44671  REV 1.1                                                1
