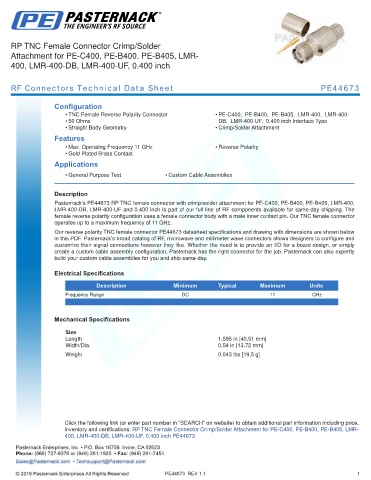

RP TNC Female Connector Crimp/Solder
Attachment for PE-C400, PE-B400, PE-B405, LMR-
400, LMR-400-DB, LMR-400-UF, 0.400 inch
RF Connectors Technical Data Sheet PE44673
Configuration
• TNC Female Reverse Polarity Connector • PE-C400, PE-B400, PE-B405, LMR-400, LMR-400-
• 50 Ohms DB, LMR-400-UF, 0.400 inch Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Reverse Polarity
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44673 RP TNC female connector with crimp/solder attachment for PE-C400, PE-B400, PE-B405, LMR-400,
LMR-400-DB, LMR-400-UF and 0.400 inch is part of our full line of RF components available for same-day shipping. The
female reverse polarity configuration uses a female connector body with a male inner contact pin. Our TNC female connector
operates up to a maximum frequency of 11 GHz.
Our reverse polarity TNC female connector PE44673 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.
Mechanical Specifications
Size
Length 1.595 in [40.51 mm]
Width/Dia. 0.54 in [13.72 mm]
.
Weight 0.043 lbs [19.5 g]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Connector Crimp/Solder Attachment for PE-C400, PE-B400, PE-B405, LMR-
400, LMR-400-DB, LMR-400-UF, 0.400 inch PE44673
PE44673 REV 1.1 1
