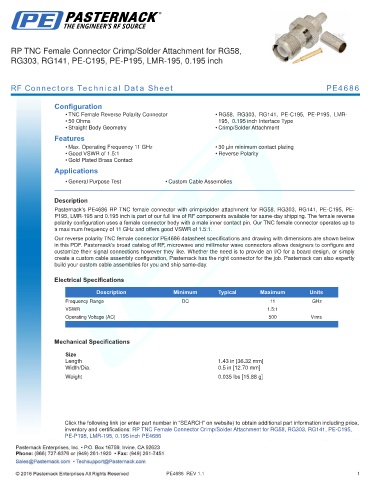

RP TNC Female Connector Crimp/Solder Attachment for RG58,
RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE4686

Configuration
• TNC Female Reverse Polarity Connector • RG58, RG303, RG141, PE-C195, PE-P195, LMR-
• 50 Ohms 195, 0.195 inch Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • 30 µin minimum contact plating
• Good VSWR of 1.5:1 • Reverse Polarity
• Gold Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4686 RP TNC female connector with crimp/solder attachment for RG58, RG303, RG141, PE-C195, PE-
P195, LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. The female reverse
polarity configuration uses a female connector body with a male inner contact pin. Our TNC female connector operates up to
a maximum frequency of 11 GHz and offers good VSWR of 1.5:1.
Our reverse polarity TNC female connector PE4686 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications
Size
Length 1.43 in [36.32 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.035 lbs [15.88 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195,
PE-P195, LMR-195, 0.195 inch PE4686

PE4686 REV 1.1 1
