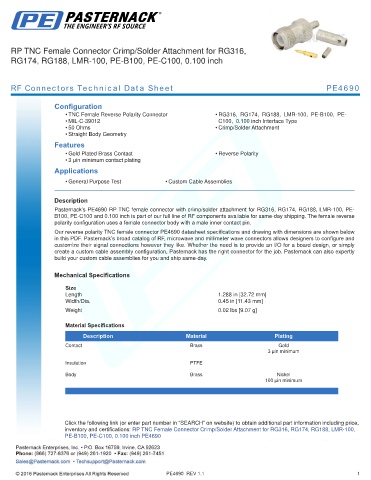

RP TNC Female Connector Crimp/Solder Attachment for RG316,
RG174, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

RF Connectors Technical Data Sheet PE4690

Configuration
• TNC Female Reverse Polarity Connector • RG316, RG174, RG188, LMR-100, PE-B100, PE-
• MIL-C-39012 C100, 0.100 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact • Reverse Polarity
• 3 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4690 RP TNC female connector with crimp/solder attachment for RG316, RG174, RG188, LMR-100, PE-
B100, PE-C100 and 0.100 inch is part of our full line of RF components available for same-day shipping. The female reverse
polarity configuration uses a female connector body with a male inner contact pin.
Our reverse polarity TNC female connector PE4690 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.288 in [32.72 mm]
Width/Dia. 0.45 in [11.43 mm]
.
Weight 0.02 lbs [9.07 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Connector Crimp/Solder Attachment for RG316, RG174, RG188, LMR-100,
PE-B100, PE-C100, 0.100 inch PE4690

PE4690 REV 1.1 1
