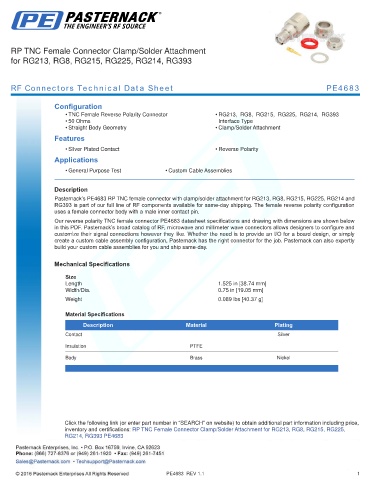

RP TNC Female Connector Clamp/Solder Attachment
for RG213, RG8, RG215, RG225, RG214, RG393

RF Connectors Technical Data Sheet PE4683

Configuration
• TNC Female Reverse Polarity Connector • RG213, RG8, RG215, RG225, RG214, RG393
• 50 Ohms Interface Type
• Straight Body Geometry • Clamp/Solder Attachment
Features
• Silver Plated Contact • Reverse Polarity
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4683 RP TNC female connector with clamp/solder attachment for RG213, RG8, RG215, RG225, RG214 and
RG393 is part of our full line of RF components available for same-day shipping. The female reverse polarity configuration
uses a female connector body with a male inner contact pin.
Our reverse polarity TNC female connector PE4683 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.525 in [38.74 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.089 lbs [40.37 g]
.
Material Specifications
Description Material Plating
Contact Silver

Insulation PTFE
Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Connector Clamp/Solder Attachment for RG213, RG8, RG215, RG225,
RG214, RG393 PE4683

PE4683 REV 1.1 1
