RP TNC Female Connector Clamp/Solder Attachment
For RG58, RG55, RG141, RG142, RG223, RG400

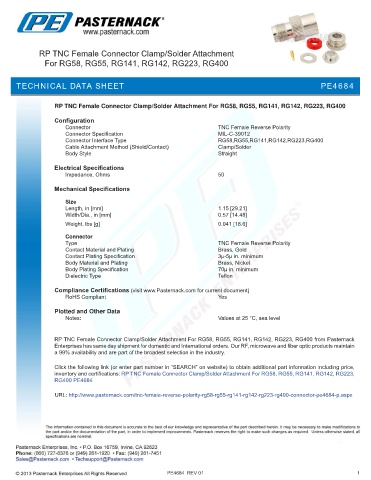

TECHNICAL DATA SHEET PE4684

RP TNC Female Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400

Configuration
Connector TNC Female Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type RG58,RG55,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.15 [29.21]
Width/Dia., in [mm] 0.57 [14.48]
.
Weight, lbs [g] 0.041 [18.6]
Connector
Type TNC Female Reverse Polarity
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP TNC Female Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400 PE4684

URL: http://www.pasternack.com/tnc-female-reverse-polarity-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4684-p.aspx

PE4684 REV 01 1
