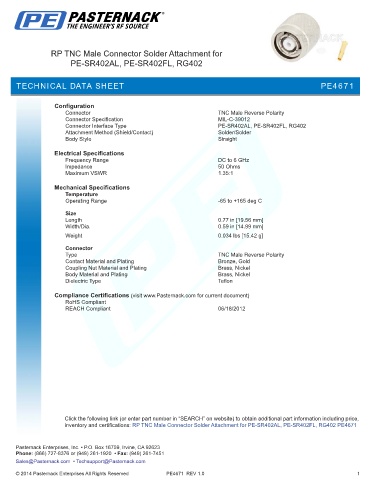

RP TNC Male Connector Solder Attachment for
PE-SR402AL, PE-SR402FL, RG402
TECHNICAL DATA SHEET PE4671
Configuration
Connector TNC Male Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type PE-SR402AL, PE-SR402FL, RG402
Attachment Method (Shield/Contact) Solder/Solder
Body Style Straight
Electrical Specifications
Frequency Range DC to 6 GHz
Impedance 50 Ohms
Maximum VSWR 1.35:1
Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C
Size
Length 0.77 in [19.56 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.034 lbs [15.42 g]
Connector
Type TNC Male Reverse Polarity
Contact Material and Plating Bronze, Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Solder Attachment for PE-SR402AL, PE-SR402FL, RG402 PE4671
PE4671 REV 1.0 1
