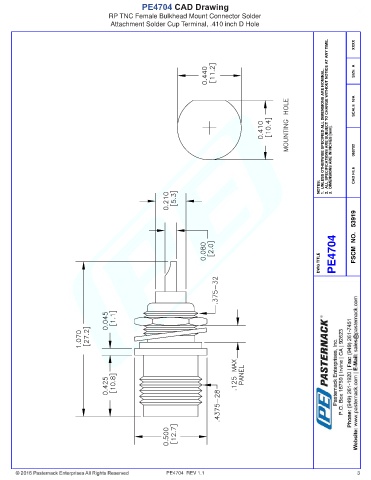

PE4704 CAD Drawing
RP TNC Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .410 inch D Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 060702
NOTES: CAD FILE
DWG TITLE PE4704 FSCM NO. 53919
PE4704 REV 1.1 3
