RP TNC Female Bulkhead Connector Solder
Attachment Solder Cup Terminal, .350 inch D Hole

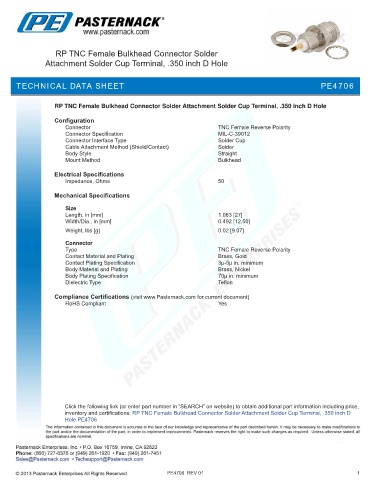

TECHNICAL DATA SHEET PE4706

RP TNC Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole

Configuration
Connector TNC Female Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 1.063 [27]
Width/Dia., in [mm] 0.492 [12.50]
.
Weight, lbs [g] 0.02 [9.07]
Connector
Type TNC Female Reverse Polarity
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .350 inch D
Hole PE4706

PE4706 REV 01 1
