RP TNC Female Bulkhead Isolated Ground Connector
Solder Attachment Solder Cup Terminal, .480 inch D Hole

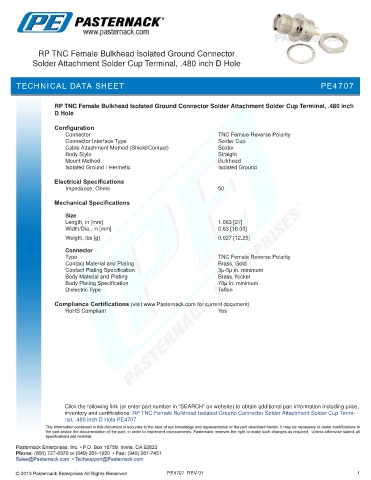

TECHNICAL DATA SHEET PE4707

RP TNC Female Bulkhead Isolated Ground Connector Solder Attachment Solder Cup Terminal, .480 inch
D Hole

Configuration
Connector TNC Female Reverse Polarity
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead
Isolated Ground / Hermetic Isolated Ground

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.063 [27]
Width/Dia., in [mm] 0.63 [16.00]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type TNC Female Reverse Polarity
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Bulkhead Isolated Ground Connector Solder Attachment Solder Cup Termi-
nal, .480 inch D Hole PE4707

PE4707 REV 01 1
