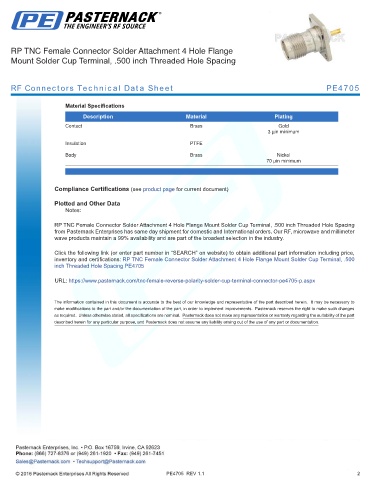

RP TNC Female Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .500 inch Threaded Hole Spacing

RF Connectors Technical Data Sheet PE4705

Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum

Insulation PTFE
Body Brass Nickel
70 µin minimum

.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

RP TNC Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .500 inch Threaded Hole Spacing
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .500
inch Threaded Hole Spacing PE4705

URL: https://www.pasternack.com/tnc-female-reverse-polarity-solder-cup-terminal-connector-pe4705-p.aspx

PE4705 REV 1.1 2
