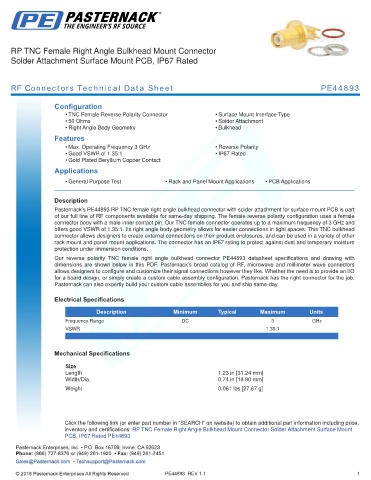

RP TNC Female Right Angle Bulkhead Mount Connector
Solder Attachment Surface Mount PCB, IP67 Rated

RF Connectors Technical Data Sheet PE44893

Configuration
• TNC Female Reverse Polarity Connector • Surface Mount Interface Type
• 50 Ohms • Solder Attachment
• Right Angle Body Geometry • Bulkhead
Features
• Max. Operating Frequency 3 GHz • Reverse Polarity
• Good VSWR of 1.35:1 • IP67 Rated
• Gold Plated Beryllium Copper Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • PCB Applications
.
Description
Pasternack’s PE44893 RP TNC female right angle bulkhead connector with solder attachment for surface mount PCB is part
of our full line of RF components available for same-day shipping. The female reverse polarity configuration uses a female
connector body with a male inner contact pin. Our TNC female connector operates up to a maximum frequency of 3 GHz and
offers good VSWR of 1.35:1. Its right angle body geometry allows for easier connections in tight spaces. This TNC bulkhead
connector allows designers to create external connections on their product enclosures, and can be used in a variety of other
rack mount and panel mount applications. The connector has an IP67 rating to protect against dust and temporary moisture
protection under immersion conditions.
Our reverse polarity TNC female right angle bulkhead connector PE44893 datasheet specifications and drawing with
dimensions are shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors
allows designers to configure and customize their signal connections however they like. Whether the need is to provide an I/O
for a board design, or simply create a custom cable assembly configuration, Pasternack has the right connector for the job.
Pasternack can also expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.35:1
.

Mechanical Specifications

Size
Length 1.23 in [31.24 mm]
Width/Dia. 0.74 in [18.80 mm]
.
Weight 0.061 lbs [27.67 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Right Angle Bulkhead Mount Connector Solder Attachment Surface Mount
PCB, IP67 Rated PE44893

PE44893 REV 1.1 1
