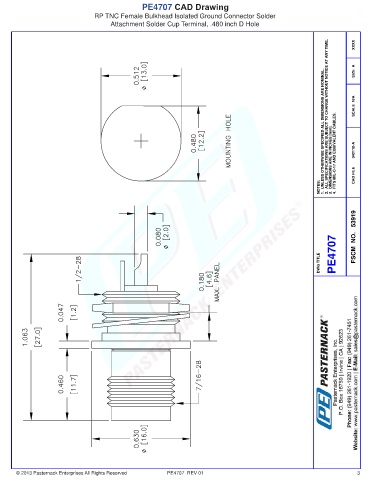

PE4707 CAD Drawing
RP TNC Female Bulkhead Isolated Ground Connector Solder
Attachment Solder Cup Terminal, .480 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042110-A

NOTES: CAD FILE

DWG TITLE PE4707 FSCM NO. 53919

© 2013 Pasternack Enterprises All Rights Reserved PE4707 REV 01 3
