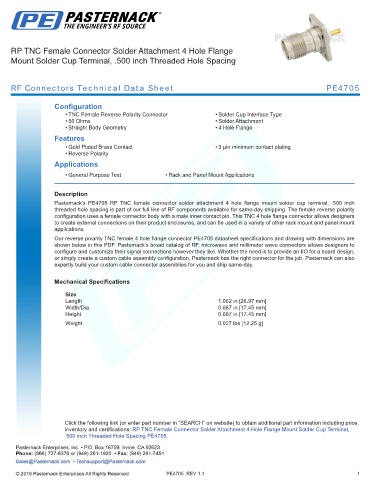

RP TNC Female Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .500 inch Threaded Hole Spacing

RF Connectors Technical Data Sheet PE4705

Configuration
• TNC Female Reverse Polarity Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Gold Plated Brass Contact • 3 µin minimum contact plating
• Reverse Polarity
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4705 RP TNC female connector solder attachment 4 hole flange mount solder cup terminal, .500 inch
threaded hole spacing is part of our full line of RF components available for same-day shipping. The female reverse polarity
configuration uses a female connector body with a male inner contact pin. This TNC 4 hole flange connector allows designers
to create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our reverse polarity TNC female 4 hole flange connector PE4705 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.062 in [26.97 mm]
Width/Dia. 0.687 in [17.45 mm]
Height 0.687 in [17.45 mm]
.
Weight 0.027 lbs [12.25 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal,
.500 inch Threaded Hole Spacing PE4705
