TNC Male Connector Clamp/Solder Attachment
for RG58, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195, LMR-195

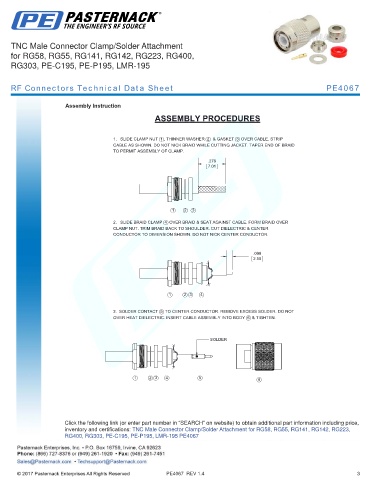

RF Connectors Technical Data Sheet PE4067

Assembly Instruction
ASSEMBLY PROCEDURES

1. SLIDE CLAMP NUT 1 , THINNER WASHER 2 & GASKET 3 OVER CABLE. STRIP
CABLE AS SHOWN. DO NOT NICK BRAID WHILE CUTTING JACKET. TAPER END OF BRAID
TO PERMIT ASSEMBLY OF CLAMP.
.276
7.01

1 2 3
2. SLIDE BRAID CLAMP 4 OVER BRAID & SEAT AGAINST CABLE. FORM BRAID OVER
CLAMP NUT. TRIM BRAID BACK TO SHOULDER. CUT DIELECTRIC & CENTER
CONDUCTOR TO DIMENSION SHOWN. DO NOT NICK CENTER CONDUCTOR.

.098
2.50

1 2 3 4

3. SOLDER CONTACT 5 TO CENTER CONDUCTOR. REMOVE EXCESS SOLDER. DO NOT
OVER HEAT DIELECTRIC. INSERT CABLE ASSEMBLY INTO BODY 6 & TIGHTEN.

SOLDER

1 2 3 4 5 6

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223,
RG400, RG303, PE-C195, PE-P195, LMR-195 PE4067
