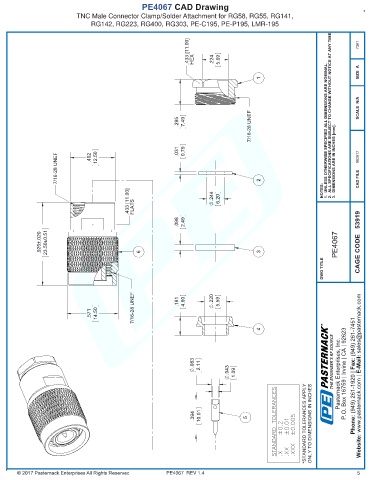

PE4067 CAD Drawing
TNC Male Connector Clamp/Solder Attachment for RG58, RG55, RG141,
RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195

.433 [11.00] HEX .224 5.69 7361

SIZE A

1

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
.295 7.49 7/16-28 UNEF

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

.031 0.79
7/16-28 UNEF .492 12.50 2 3. DIMENSIONS ARE IN INCHES [mm]. 092817 CAD FILE

.433 [11.00] FLATS .244 6.20 NOTES:

.098 2.49

.925±.020 23.50±0.51 PE4067 CAGE CODE 53919

DWG TITLE
6 3

7/16-28 UNEF .181 4.60 .220 5.59
.571 14.50
R
4
THE ENGINEER'S RF SOURCE

.083 2.11 .043 1.09 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES

.394 10.01 5

.X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE4067 REV 1.4 5
