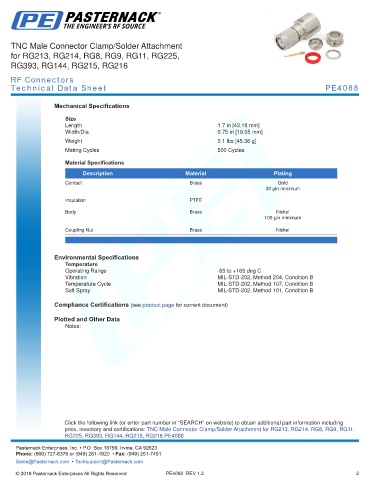

TNC Male Connector Clamp/Solder Attachment
for RG213, RG214, RG8, RG9, RG11, RG225,
RG393, RG144, RG215, RG216
RF Connectors
Technical Data Sheet PE4088
Mechanical Specifications
Size
Length 1.7 in [43.18 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.1 lbs [45.36 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
Coupling Nut Brass Nickel
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Vibration MIL-STD-202, Method 204, Condition B
Temperature Cycle MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Male Connector Clamp/Solder Attachment for RG213, RG214, RG8, RG9, RG11,
-
RG225, RG393, RG144, RG215, RG216 PE4088 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE4088 REV 1.2 2
