TNC Male Connector Clamp/Solder Attachment
For PE-SR402AL, PE-SR402FL, RG402

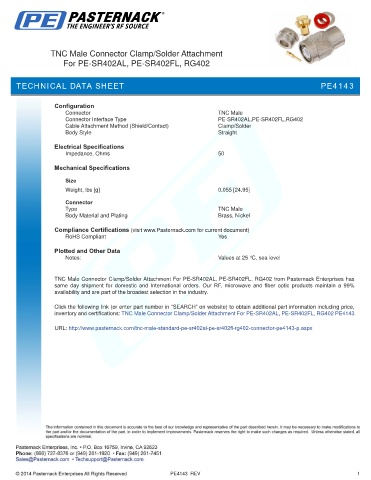

TECHNICAL DATA SHEET PE4143

Configuration
Connector TNC Male
Connector Interface Type PE-SR402AL,PE-SR402FL,RG402
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
.
Weight, lbs [g] 0.055 [24.95]
Connector
Type TNC Male
Body Material and Plating Brass, Nickel

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

TNC Male Connector Clamp/Solder Attachment For PE-SR402AL, PE-SR402FL, RG402 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Clamp/Solder Attachment For PE-SR402AL, PE-SR402FL, RG402 PE4143

URL: http://www.pasternack.com/tnc-male-standard-pe-sr402al-pe-sr402fl-rg402-connector-pe4143-p.aspx

PE4143 REV 1
