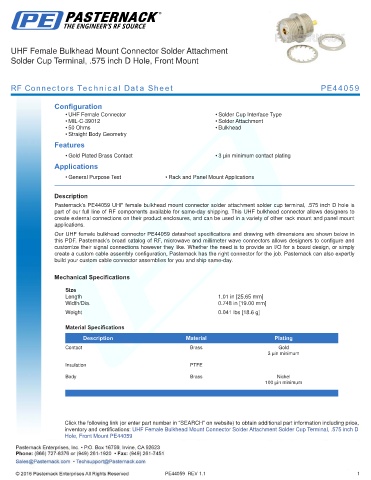

UHF Female Bulkhead Mount Connector Solder Attachment
Solder Cup Terminal, .575 inch D Hole, Front Mount

RF Connectors Technical Data Sheet PE44059

Configuration
• UHF Female Connector • Solder Cup Interface Type
• MIL-C-39012 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 3 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44059 UHF female bulkhead mount connector solder attachment solder cup terminal, .575 inch D hole is
part of our full line of RF components available for same-day shipping. This UHF bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our UHF female bulkhead connector PE44059 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.01 in [25.65 mm]
Width/Dia. 0.748 in [19.00 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .575 inch D
Hole, Front Mount PE44059

PE44059 REV 1.1 1
