UHF Female Bulkhead Connector Solder Attachment
Solder Cup Terminal, .575 inch D Hole, Rear Mount

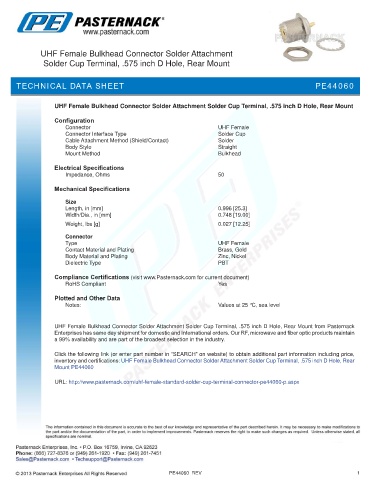

TECHNICAL DATA SHEET PE44060

UHF Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .575 inch D Hole, Rear Mount

Configuration
Connector UHF Female
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.996 [25.3]
Width/Dia., in [mm] 0.748 [19.00]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type UHF Female
Contact Material and Plating Brass, Gold
Body Material and Plating Zinc, Nickel
Dielectric Type PBT

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

UHF Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .575 inch D Hole, Rear Mount from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .575 inch D Hole, Rear
Mount PE44060

URL: http://www.pasternack.com/uhf-female-standard-solder-cup-terminal-connector-pe44060-p.aspx

PE44060 REV 1
