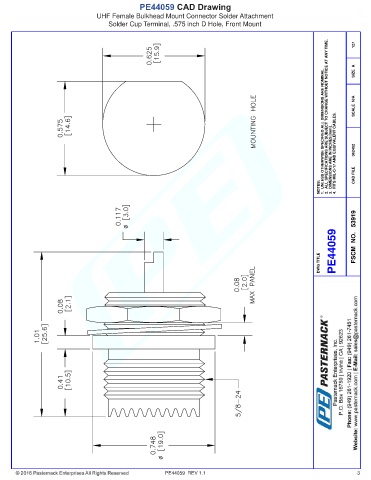

PE44059 CAD Drawing
UHF Female Bulkhead Mount Connector Solder Attachment
Solder Cup Terminal, .575 inch D Hole, Front Mount

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062402

NOTES: CAD FILE

PE44059 FSCM NO. 53919

DWG TITLE

PE44059 REV 1.1 3
