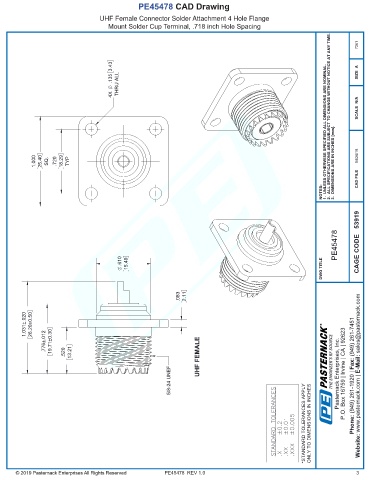

PE45478 CAD Drawing
UHF Female Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .718 inch Hole Spacing

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

3.43 SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
.135 THRU ALL

4X
SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm].

1.000 25.40 SQ. .720 18.29 TYP 04/26/18

NOTES: CAD FILE

PE45478 CAGE CODE 53919

.610 15.49 DWG TITLE

.083 2.11

1.031±.020 26.20±0.50 R

P.O. Box 16759 | Irvine | CA | 92623
.776±.012 19.71±0.30
Pasternack Enterprises, Inc.

.520 13.21 UHF FEMALE
THE ENGINEER'S RF SOURCE
5/8-24 UNEF Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45478 REV 1.0 3
