UHF Female Connector Field Replaceable
Attachment 4 Hole Flange Slotted Contact Terminal,
1.24 Sq. Flange Watt Meter Connector

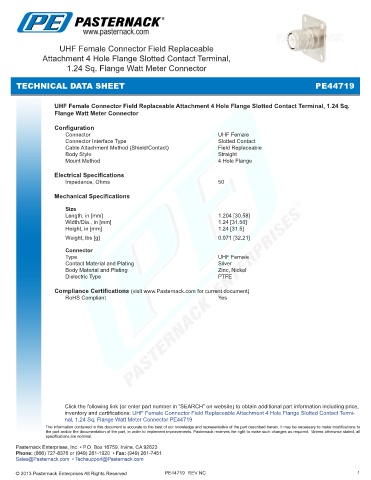

TECHNICAL DATA SHEET PE44719

UHF Female Connector Field Replaceable Attachment 4 Hole Flange Slotted Contact Terminal, 1.24 Sq.
Flange Watt Meter Connector

Configuration
Connector UHF Female
Connector Interface Type Slotted Contact
Cable Attachment Method (Shield/Contact) Field Replaceable
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 1.204 [30.58]
Width/Dia., in [mm] 1.24 [31.50]
Height, in [mm] 1.24 [31.5]
.
Weight, lbs [g] 0.071 [32.21]
Connector
Type UHF Female
Contact Material and Plating Silver
Body Material and Plating Zinc, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female Connector Field Replaceable Attachment 4 Hole Flange Slotted Contact Termi-
nal, 1.24 Sq. Flange Watt Meter Connector PE44719

PE44719 REV NC 1
