UHF Sexless Connector Accessories
Attachment For RG59, RG62, RG71

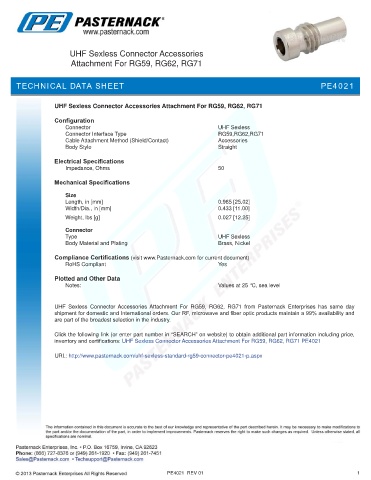

TECHNICAL DATA SHEET PE4021

UHF Sexless Connector Accessories Attachment For RG59, RG62, RG71

Configuration
Connector UHF Sexless
Connector Interface Type RG59,RG62,RG71
Cable Attachment Method (Shield/Contact) Accessories
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.985 [25.02]
Width/Dia., in [mm] 0.433 [11.00]
.
Weight, lbs [g] 0.027 [12.25]

Connector
Type UHF Sexless
Body Material and Plating Brass, Nickel

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

UHF Sexless Connector Accessories Attachment For RG59, RG62, RG71 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Sexless Connector Accessories Attachment For RG59, RG62, RG71 PE4021

URL: http://www.pasternack.com/uhf-sexless-standard-rg59-connector-pe4021-p.aspx

PE4021 REV 01 1
