UHF Sexless Connector Accessories Attachment For RG58

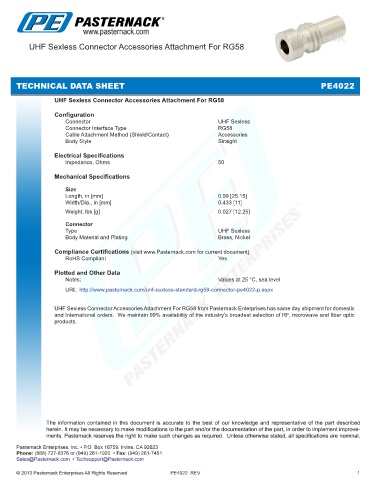

TECHNICAL DATA SHEET PE4022

UHF Sexless Connector Accessories Attachment For RG58

Configuration
Connector UHF Sexless
Connector Interface Type RG58
Cable Attachment Method (Shield/Contact) Accessories
Body Style Straight

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 0.99 [25.15]
Width/Dia., in [mm] 0.433 [11]
.
Weight, lbs [g] 0.027 [12.25]

Connector
Type UHF Sexless
Body Material and Plating Brass, Nickel

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/uhf-sexless-standard-rg58-connector-pe4022-p.aspx

UHF Sexless Connector Accessories Attachment For RG58 from Pasternack Enterprises has same day shipment for domestic
and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and fiber optic
products.

PE4022 REV 1
