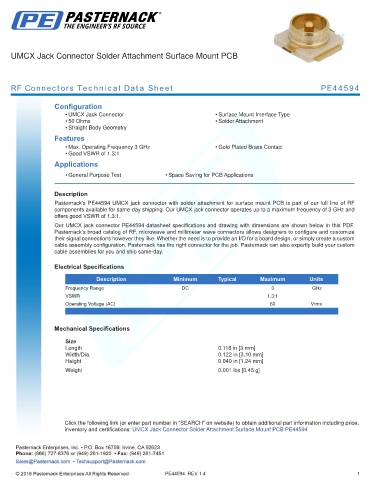

UMCX Jack Connector Solder Attachment Surface Mount PCB

RF Connectors Technical Data Sheet PE44594

Configuration
• UMCX Jack Connector • Surface Mount Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE44594 UMCX jack connector with solder attachment for surface mount PCB is part of our full line of RF
components available for same-day shipping. Our UMCX jack connector operates up to a maximum frequency of 3 GHz and
offers good VSWR of 1.3:1.
Our UMCX jack connector PE44594 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.3:1
Operating Voltage (AC) 60 Vrms
.

Mechanical Specifications

Size
Length 0.118 in [3 mm]
Width/Dia. 0.122 in [3.10 mm]
Height 0.049 in [1.24 mm]
.
Weight 0.001 lbs [0.45 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UMCX Jack Connector Solder Attachment Surface Mount PCB PE44594

PE44594 REV 1.4 1
