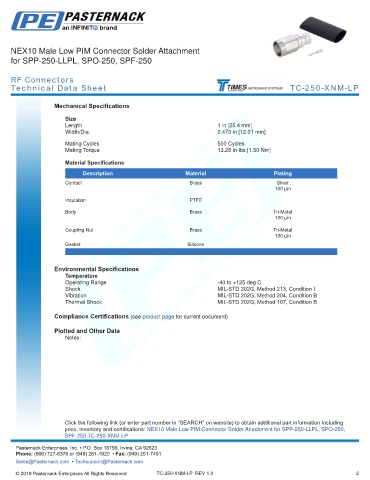

NEX10 Male Low PIM Connector Solder Attachment
for SPP-250-LLPL, SPO-250, SPF-250
RF Connectors
Technical Data Sheet TC-250-XNM-LP
Mechanical Specifications
Size
Length 1 in [25.4 mm]
Width/Dia. 0.473 in [12.01 mm]
.
.
Mating Cycles 500 Cycles
Mating Torque 13.28 in-lbs [1.50 Nm]
Material Specifications
Description Material Plating
Contact Brass Silver
100 µin
Insulation PTFE
Body Brass Tri-Metal
100 µin
Coupling Nut Brass Tri-Metal
100 µin
Gasket Silicone
.
Environmental Specifications
Temperature
Operating Range -40 to +125 deg C
Shock MIL-STD 202G, Method 213, Condition I
Vibration MIL-STD 202G, Method 204, Condition B
Thermal Shock MIL-STD 202G, Method 107, Condition B
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: NEX10 Male Low PIM Connector Solder Attachment for SPP-250-LLPL, SPO-250, -
SPF-250 TC-250-XNM-LP Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
TC-250-XNM-LP REV 1.0 2
