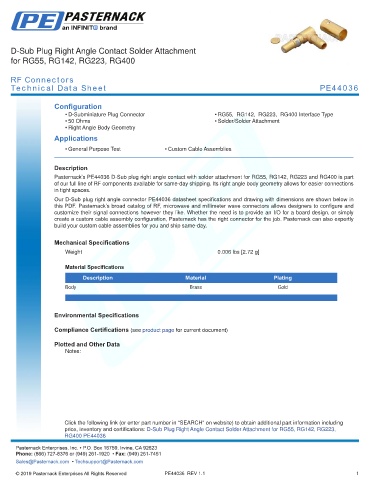

Page 507 - TNC to Double Banana RF Connector Datasheets

D-Sub Plug Right Angle Contact Solder Attachment
for RG55, RG142, RG223, RG400

RF Connectors
Technical Data Sheet PE44036

Configuration
• D-Subminiature Plug Connector • RG55, RG142, RG223, RG400 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Right Angle Body Geometry
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44036 D-Sub plug right angle contact with solder attachment for RG55, RG142, RG223 and RG400 is part
of our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier connections
in tight spaces.
Our D-Sub plug right angle connector PE44036 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
.
Weight 0.006 lbs [2.72 g]
.
Material Specifications
Description Material Plating
Body Brass Gold

.

Environmental Specifications

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: D-Sub Plug Right Angle Contact Solder Attachment for RG55, RG142, RG223, -
RG400 PE44036 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44036 REV 1.1 1
