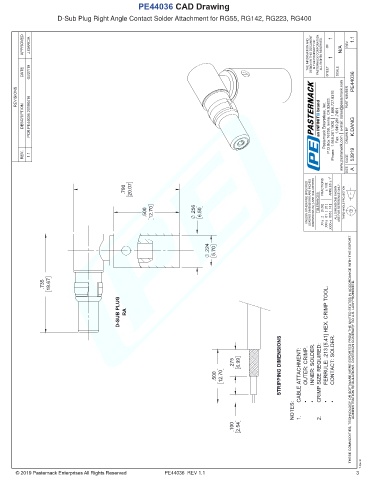

PE44036 CAD Drawing
D-Sub Plug Right Angle Contact Solder Attachment for RG55, RG142, RG223, RG400

APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV 1.1

DATE 04/27/19 SHEET OF SCALE PE44036

REVISIONS PART NUMBER

DESCRIPTION PCR PE44036 20190416 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. 1.1 CAGE 53919

SIZE A
.790 20.07 FRACTIONS ± 1/32 ANGLES ± 1°

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
.500 12.70 .256 6.50 .2 [5.08] .01 [ .25 ] .005 [ .13 ]

.X=± .XX=± .XXX=±

.224 5.70

.735 18.67

D-SUB PLUG RA

FERRULE: .213 [5.41] HEX. CRIMP TOOL. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
.275 6.99 INNER: SOLDER. CONTACT: SOLDER.
STRIPPING DIMENSIONS OUTER: CRIMP.
.500 12.70 CABLE ATTACHMENT: CRIMP SIZE REQUIRED:

NOTES: • • • •

1. 2.
.100 2.54 -
Pasternack does not make

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE44036 REV 1.1 3
