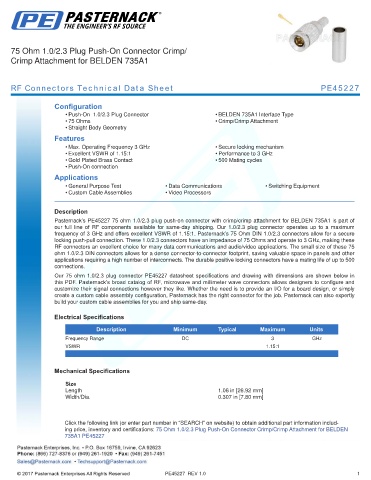

75 Ohm 1.0/2.3 Plug Push-On Connector Crimp/
Crimp Attachment for BELDEN 735A1

RF Connectors Technical Data Sheet PE45227

Configuration
• Push-On 1.0/2.3 Plug Connector • BELDEN 735A1 Interface Type
• 75 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 3 GHz • Secure locking mechanism
• Excellent VSWR of 1.15:1 • Performance to 3 GHz
• Gold Plated Brass Contact • 500 Mating cycles
• Push-On connection
Applications
• General Purpose Test • Data Communications • Switching Equipment
• Custom Cable Assemblies • Video Processors
.
Description
Pasternack’s PE45227 75 ohm 1.0/2.3 plug push-on connector with crimp/crimp attachment for BELDEN 735A1 is part of
our full line of RF components available for same-day shipping. Our 1.0/2.3 plug connector operates up to a maximum
frequency of 3 GHz and offers excellent VSWR of 1.15:1. Pasternack’s 75 Ohm DIN 1.0/2.3 connectors allow for a secure
locking push-pull connection. These 1.0/2.3 connectors have an impedance of 75 Ohms and operate to 3 GHz, making these
RF connectors an excellent choice for many data communications and audio/video applications. The small size of these 75
ohm 1.0/2.3 DIN connectors allows for a dense connector-to-connector footprint, saving valuable space in panels and other
applications requiring a high number of interconnects. The durable positive locking connectors have a mating life of up to 500
connections.
Our 75 ohm 1.0/2.3 plug connector PE45227 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.
Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.15:1
.

Mechanical Specifications
Size
Length 1.06 in [26.92 mm]
Width/Dia. 0.307 in [7.80 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm 1.0/2.3 Plug Push-On Connector Crimp/Crimp Attachment for BELDEN
735A1 PE45227

PE45227 REV 1.0 1
