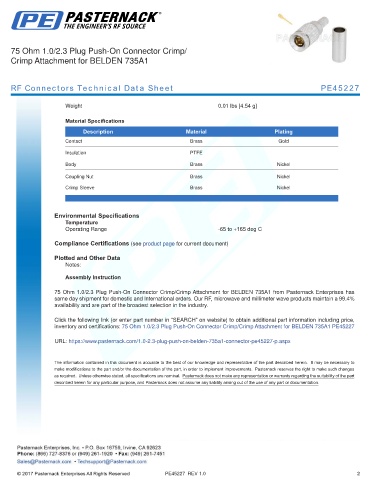

75 Ohm 1.0/2.3 Plug Push-On Connector Crimp/
Crimp Attachment for BELDEN 735A1

RF Connectors Technical Data Sheet PE45227

Weight 0.01 lbs [4.54 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel

Coupling Nut Brass Nickel
Crimp Sleeve Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Assembly Instruction

75 Ohm 1.0/2.3 Plug Push-On Connector Crimp/Crimp Attachment for BELDEN 735A1 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.0/2.3 Plug Push-On Connector Crimp/Crimp Attachment for BELDEN 735A1 PE45227

URL: https://www.pasternack.com/1.0-2.3-plug-push-on-belden-735a1-connector-pe45227-p.aspx

PE45227 REV 1.0 2
