D-Sub Receptacle Right Angle Contact Solder
Attachment For PE-SR405AL, PE-SR405FL, RG405

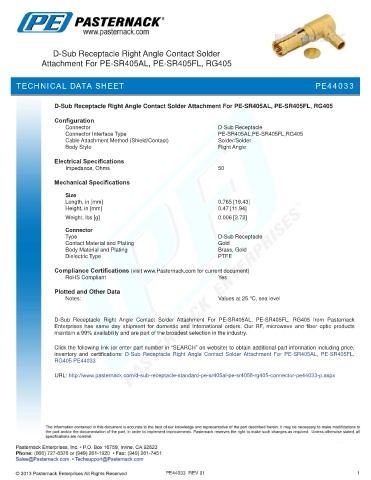

TECHNICAL DATA SHEET PE44033

D-Sub Receptacle Right Angle Contact Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

Configuration
Connector D-Sub Receptacle
Connector Interface Type PE-SR405AL,PE-SR405FL,RG405
Cable Attachment Method (Shield/Contact) Solder/Solder
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.765 [19.43]
Height, in [mm] 0.47 [11.94]
.
Weight, lbs [g] 0.006 [2.72]

Connector
Type D-Sub Receptacle
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

D-Sub Receptacle Right Angle Contact Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Receptacle Right Angle Contact Solder Attachment For PE-SR405AL, PE-SR405FL,
RG405 PE44033

URL: http://www.pasternack.com/d-sub-receptacle-standard-pe-sr405al-pe-sr405fl-rg405-connector-pe44033-p.aspx

PE44033 REV 01 1
