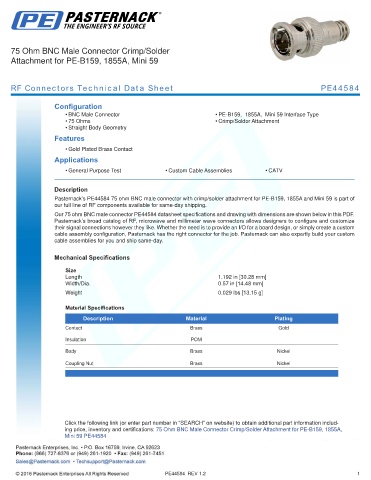

75 Ohm BNC Male Connector Crimp/Solder
Attachment for PE-B159, 1855A, Mini 59

RF Connectors Technical Data Sheet PE44584

Configuration
• BNC Male Connector • PE-B159, 1855A, Mini 59 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44584 75 ohm BNC male connector with crimp/solder attachment for PE-B159, 1855A and Mini 59 is part of
our full line of RF components available for same-day shipping.
Our 75 ohm BNC male connector PE44584 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.192 in [30.28 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.029 lbs [13.15 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation POM

Body Brass Nickel
Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm BNC Male Connector Crimp/Solder Attachment for PE-B159, 1855A,
Mini 59 PE44584

PE44584 REV 1.2 1
