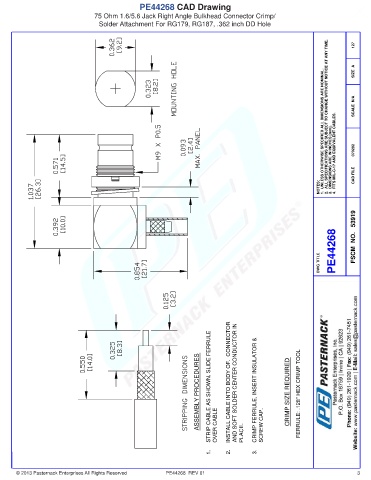

PE44268 CAD Drawing
75 Ohm 1.6/5.6 Jack Right Angle Bulkhead Connector Crimp/
Solder Attachment For RG179, RG187, .362 inch DD Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 070202

NOTES: CAD FILE

PE44268 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES STRIP CABLE AS SHOWN. SLIDE FERRULE INSTALL CABLE INTO BODY OF. CONNECTOR AND SOFT SOLDER CENTER CONDUCTOR IN CRIMP FERRULE, INSERT INSULATOR & CRIMP SIZE REQUIRED FERRULE: .128" HEX CRIMP TOOL

1. OVER CABLE 2. PLACE. 3. SCREW CAP.

© 2013 Pasternack Enterprises All Rights Reserved PE44268 REV 01 3
