75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .052 inch Hole Spacing

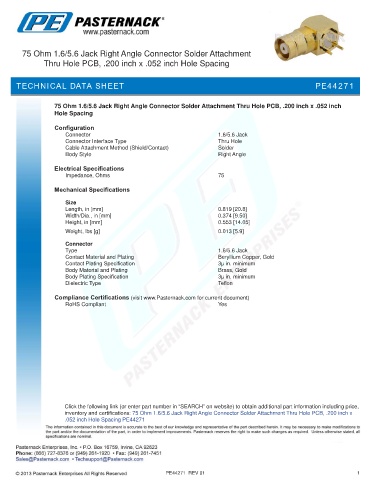

TECHNICAL DATA SHEET PE44271
75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch
Hole Spacing
Configuration
Connector 1.6/5.6 Jack
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 75
Mechanical Specifications
Size
Length, in [mm] 0.819 [20.8]
Width/Dia., in [mm] 0.374 [9.50]
Height, in [mm] 0.553 [14.05]
.
Weight, lbs [g] 0.013 [5.9]
Connector
Type 1.6/5.6 Jack
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification 3µ in. minimum
Body Material and Plating Brass, Gold
Body Plating Specification 3µ in. minimum
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x
.052 inch Hole Spacing PE44271
PE44271 REV 01 1
