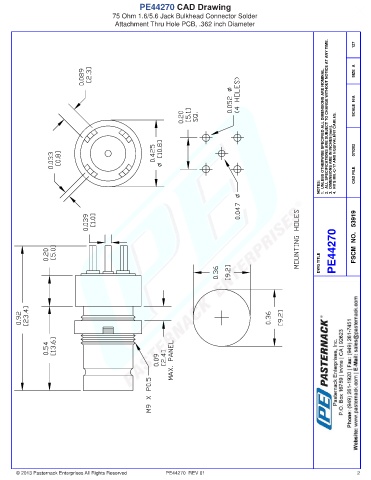

PE44270 CAD Drawing
75 Ohm 1.6/5.6 Jack Bulkhead Connector Solder
Attachment Thru Hole PCB, .362 inch Diameter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 070202

NOTES: CAD FILE

PE44270 FSCM NO. 53919

DWG TITLE

© 2013 Pasternack Enterprises All Rights Reserved PE44270 REV 01 2
