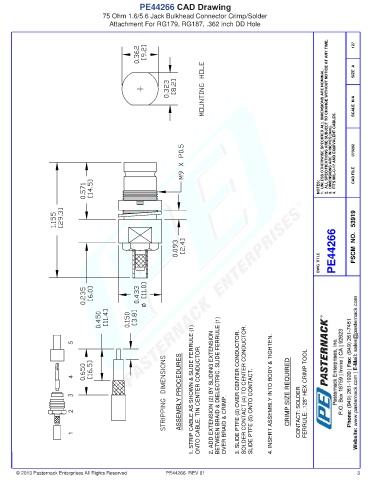

PE44266 CAD Drawing
75 Ohm 1.6/5.6 Jack Bulkhead Connector Crimp/Solder
Attachment For RG179, RG187, .362 inch DD Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 070202

NOTES: CAD FILE

PE44266 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & SLIDE FERRULE (1) ONTO CABLE. TIN CENTER CONDUCTOR. 2. ADD EXTENSION (2) BY SLIDING EXTENSION BETWEEN BRAID & DIELECTRIC. SLIDE FERRULE (1) OVER BRAID & CRIMP. 3. SLIDE PTFE (3) OVER CENTER CONDUCTOR. SOLDER CONTACT (4) TO CENTER CONDUCTOR. SLIDE PTFE (5) ONTO CONTACT. 4. INSERT ASSEMBLY INTO BODY & TIGHTEN. CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .128" HEX CRIMP TOOL

© 2013 Pasternack Enterprises All Rights Reserved PE44266 REV 01 3
