75 Ohm 1.6/5.6 Jack Bulkhead Connector Crimp/Solder
Attachment For RG179, RG187, .362 inch DD Hole

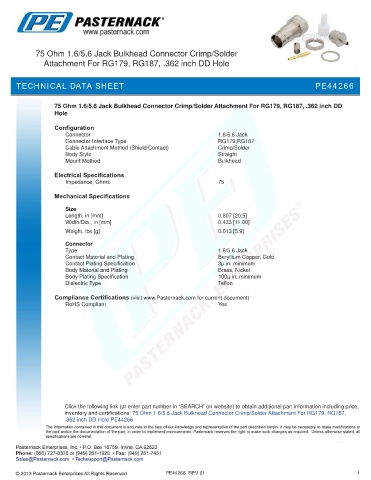

TECHNICAL DATA SHEET PE44266

75 Ohm 1.6/5.6 Jack Bulkhead Connector Crimp/Solder Attachment For RG179, RG187, .362 inch DD
Hole

Configuration
Connector 1.6/5.6 Jack
Connector Interface Type RG179,RG187
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Size
Length, in [mm] 0.807 [20.5]
Width/Dia., in [mm] 0.433 [11.00]
.
Weight, lbs [g] 0.013 [5.9]

Connector
Type 1.6/5.6 Jack
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification 3µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.6/5.6 Jack Bulkhead Connector Crimp/Solder Attachment For RG179, RG187,
.362 inch DD Hole PE44266

PE44266 REV 01 1
