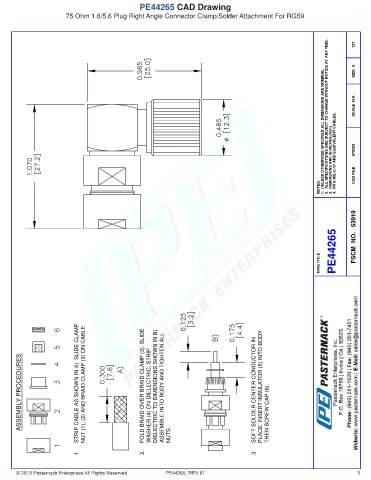

PE44265 CAD Drawing
75 Ohm 1.6/5.6 Plug Right Angle Connector Clamp/Solder Attachment For RG59

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 070202

NOTES: CAD FILE

PE44265 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES STRIP CABLE AS SHOWN IN A). SLIDE CLAMP NUT (1), (2) AND BRAID CLAMP (3) ON CABLE. FOLD BRAID OVER BRAID CLAMP (3). SLIDE WASHER (4) ON DIELECTRIC, STRIP DIELECTRIC TO DIMENSIONS SHOWN IN B) ASSEMBLE INTO BODY AND TIGHTEN ALL SOFT SOLDER CENTER CONDUCTOR IN PLACE. INSERT INSULATOR (5) INTO BODY THEN SCREW CAP (6).

1. 2. NUTS. 3.

© 2013 Pasternack Enterprises All Rights Reserved PE44265 REV 01 3
