75 Ohm 1.6/5.6 Plug Right Angle Connector Clamp/
Solder Attachment For RG179, RG187

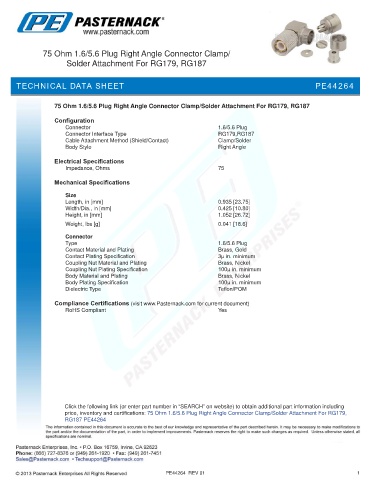

TECHNICAL DATA SHEET PE44264

75 Ohm 1.6/5.6 Plug Right Angle Connector Clamp/Solder Attachment For RG179, RG187

Configuration
Connector 1.6/5.6 Plug
Connector Interface Type RG179,RG187
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.935 [23.75]
Width/Dia., in [mm] 0.425 [10.80]
Height, in [mm] 1.052 [26.72]
.
Weight, lbs [g] 0.041 [18.6]
Connector
Type 1.6/5.6 Plug
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon/POM

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm 1.6/5.6 Plug Right Angle Connector Clamp/Solder Attachment For RG179,
RG187 PE44264

PE44264 REV 01 1
