75 Ohm 1.6/5.6 Plug Connector Crimp/
Solder Attachment For RG179, RG187

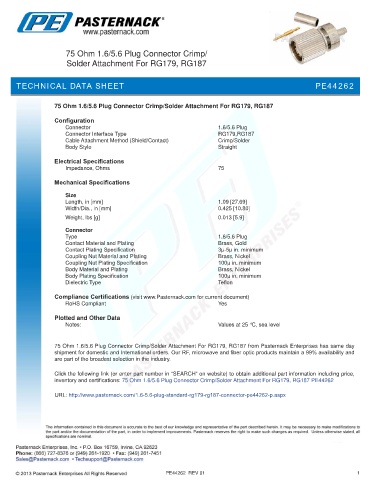

TECHNICAL DATA SHEET PE44262

75 Ohm 1.6/5.6 Plug Connector Crimp/Solder Attachment For RG179, RG187

Configuration
Connector 1.6/5.6 Plug
Connector Interface Type RG179,RG187
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.09 [27.69]
Width/Dia., in [mm] 0.425 [10.80]
.
Weight, lbs [g] 0.013 [5.9]

Connector
Type 1.6/5.6 Plug
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm 1.6/5.6 Plug Connector Crimp/Solder Attachment For RG179, RG187 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.6/5.6 Plug Connector Crimp/Solder Attachment For RG179, RG187 PE44262

URL: http://www.pasternack.com/1.6-5.6-plug-standard-rg179-rg187-connector-pe44262-p.aspx

PE44262 REV 01 1
