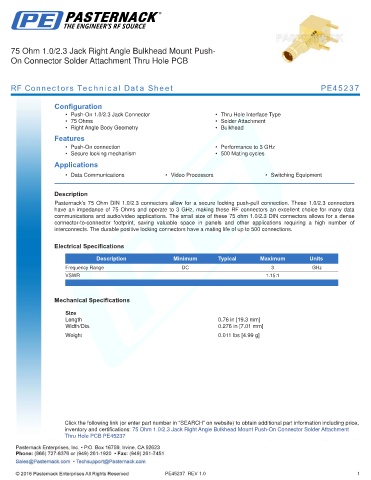

75 Ohm 1.0/2.3 Jack Right Angle Bulkhead Mount Push-
On Connector Solder Attachment Thru Hole PCB

RF Connectors Technical Data Sheet PE45237

Configuration
• Push-On 1.0/2.3 Jack Connector • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
• Right Angle Body Geometry • Bulkhead
Features
• Push-On connection • Performance to 3 GHz
• Secure locking mechanism • 500 Mating cycles
Applications
• Data Communications • Video Processors • Switching Equipment
.
Description
Pasternack’s 75 Ohm DIN 1.0/2.3 connectors allow for a secure locking push-pull connection. These 1.0/2.3 connectors
have an impedance of 75 Ohms and operate to 3 GHz, making these RF connectors an excellent choice for many data
communications and audio/video applications. The small size of these 75 ohm 1.0/2.3 DIN connectors allows for a dense
connector-to-connector footprint, saving valuable space in panels and other applications requiring a high number of
interconnects. The durable positive locking connectors have a mating life of up to 500 connections.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.15:1
.

Mechanical Specifications

Size
Length 0.76 in [19.3 mm]
Width/Dia. 0.276 in [7.01 mm]
.
Weight 0.011 lbs [4.99 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.0/2.3 Jack Right Angle Bulkhead Mount Push-On Connector Solder Attachment
Thru Hole PCB PE45237

PE45237 REV 1.0 1
