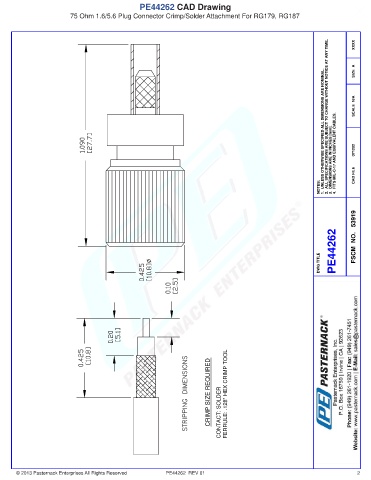

PE44262 CAD Drawing
75 Ohm 1.6/5.6 Plug Connector Crimp/Solder Attachment For RG179, RG187

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 071202

NOTES: CAD FILE

PE44262 FSCM NO. 53919

DWG TITLE

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .128" HEX CRIMP TOOL

© 2013 Pasternack Enterprises All Rights Reserved PE44262 REV 01 2
