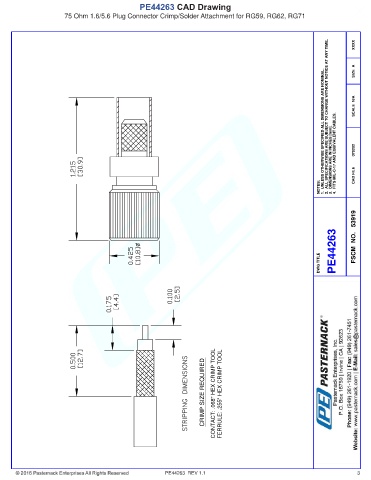

PE44263 CAD Drawing
75 Ohm 1.6/5.6 Plug Connector Crimp/Solder Attachment for RG59, RG62, RG71

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 070202

NOTES: CAD FILE

PE44263 FSCM NO. 53919

DWG TITLE

CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .255" HEX CRIMP TOOL

PE44263 REV 1.1 3
